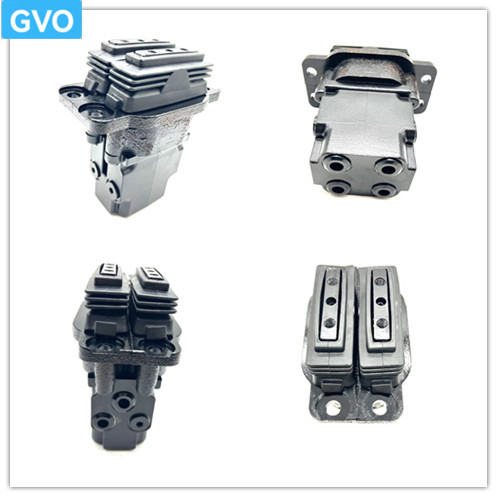

410119-000382 Excavator spare parts foot control valve foot pedal
valve Dx55 DX60 Dx260 DX80 DX140 DX260 DX300 DX420 DX500 walking
foot valve assembly foot valve
| Brand | GVO |
| Appliion | walking foot valve assembly foot valve |
| Model No. | Dx55 60 Sk75 Dx260 |
| Condition | 100% New |
| Size | Standard |
| Package | As customer's requirment |
| Adavatages | High Quality |
| Factory Price |
| Adequate inventory |
The following is an introduction to the DX500 excavator walking
foot valve assembly:
Structural composition
- Valve body: usually made of high-strength metal materials, it is
the shell of the entire foot valve assembly, providing support and
protection for the internal components. It is equipped with oil
inlet holes, oil return holes and working ports, etc., to achieve
the inlet and outlet and distribution of oil.
- Valve core: It is a key component for controlling the flow of
oil. It controls the on-off of the oil circuit and the size of the
oil flow by moving in the valve body. The material is mostly
wear-resistant metal, and the surface is precision machined to
ensure a good seal with the valve seat.
- Spring: Including balance spring and return spring, etc. The
balance spring is used to maintain the balance of force when the
valve core moves, so that the valve core can stably control the oil
pressure and flow; the return spring returns the valve core to its
initial position after the foot pedal is released.
- Rocker arm push rod: Connects the foot pedal and the valve core,
converts the pedaling action of the foot pedal into the movement of
the valve core, and is usually made of a solid metal rod with a
certain length and lever ratio to achieve precise control.
- Damping chamber: It is divided into upper damping chamber and
lower damping chamber. It controls the flow speed and pressure of
oil in the chamber to buffer and stabilize the action of valve
core, reduce vibration and impact, and make the operation of foot
valve smoother.
Working principle
- Middle position oil return: When the walking foot valve is in the
middle position, the oil circuit from the oil inlet is cut off, and
the four working ports are connected to the oil return port through
the internal channel to realize oil return. At this time, the
excavator walking device is in a stopped state.
- Forward control: When the foot pedal is stepped forward, the
valve core is driven to move through the rocker push rod, so that
the oil inlet is connected to the corresponding working port, and
the pressure oil enters the forward oil chamber of the walking
motor, driving the walking motor to rotate forward to realize the
forward movement of the excavator. The greater the pedaling force,
the greater the valve core opening, the more oil flow, and the
faster the walking speed.
- Backward control: When the foot pedal is stepped backward, the
valve core moves in the opposite direction, the oil inlet is
connected to another working port, and the pressure oil enters the
backward oil chamber of the walking motor, driving the walking
motor to reverse, realizing the backward movement of the excavator.
Similarly, the pedaling force determines the backward speed.
FAQ:
1.What do you mainly produce?
A;Our main business hydraulic Spare Parts,safety valve,Gear
pump,hydraulic pump,control valve,Trave Motor Assy,swing motor,Seal
kit, Electric parts,solenoid valve, engine assembly.etc.
2, Do you have stock for the goods?
A;We have plenty stock for many items in the warehouse.
3. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
4.I know only the excavator model, but can not offer parts No.,
what should I do ?
A;If possible, you can send us the old photo, nameplate or the size
for reference.
5.can I order one of our samples for testing first?
A: Of course!
Welcome to contact us for Inquiry & orde
If you are not sure about the model and part number - please
contact us via WhatsApp
